Product Description

CH520 40 a single-phase SCR power/solid regulator
New subminiature volume aluminum rail, built-in power regulator detached fuse device at a high speed
Remove the fast fuse; Please between terminals 1 and fast fuse
Son, use one word screw up
With the green signal into force LED and blown fuse indicator display
Directly built in VR, percentage, can set the maximum output voltage
The clock direction; Whereas direction decreases
With functions of R.C protection and surge protection
The input voltage:
Single-phase 110 - to 380-480 - v, 240 v + 10% 50/60 hz
40 a load current:
Control mode: phase control
Input signal: second line type 4-20 ma
Output control range: 0 ~ 99%
Ambient temperature/humidity: - 10 ~ + 50 ℃ and 90% RH

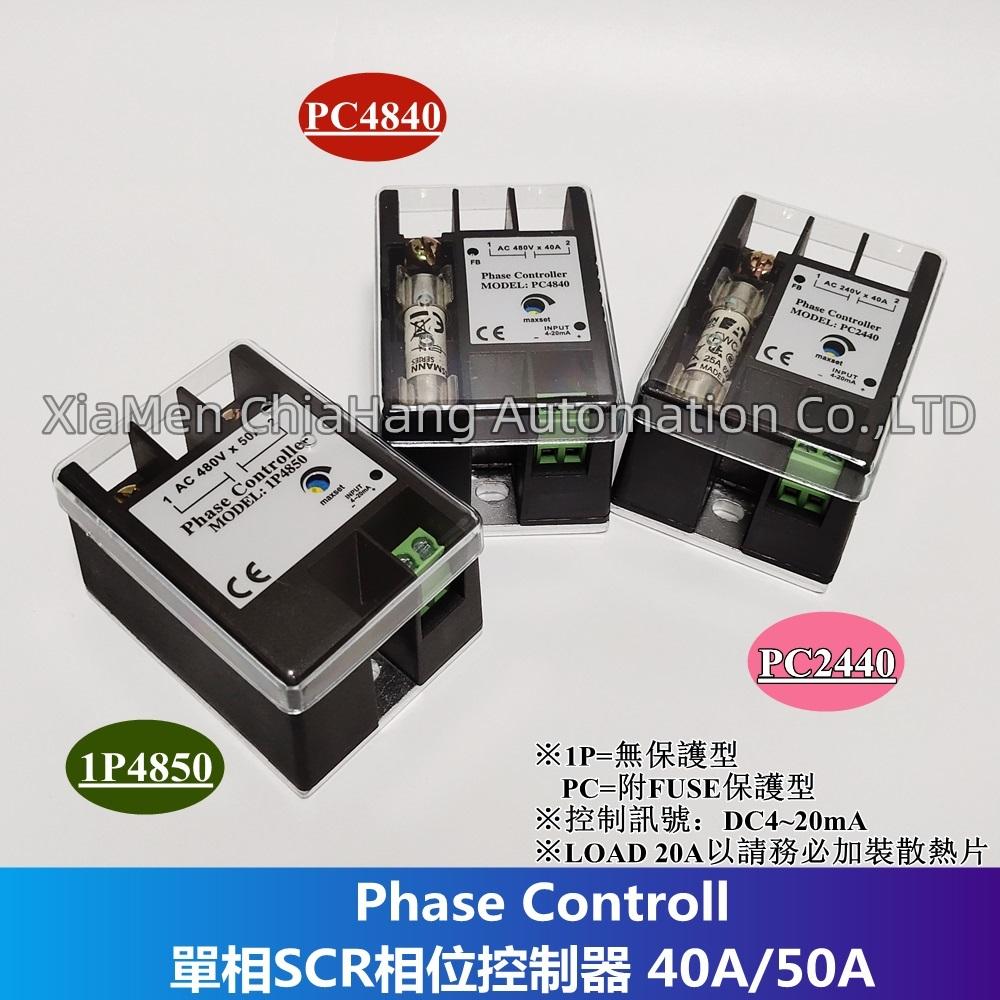

Product Image
